100T Hydraulic Folding Gooseneck Trailer
100T Hydraulic Folding Gooseneck Trailer

100T Hydraulic Folding Gooseneck Trailer

4 Axle Hydraulic Folding Gooseneck Trailer is widely used for transporting construction machines no matter they are with tires of crawlers or not.

SKU:
MPN:
Brand:

4 Axle Hydraulic Folding Gooseneck Trailer Product Description:

Folding gooseneck trailer is a kind of front-loading trailer, different from the RGN trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers or not.

Lowbed trailer with a foldable neck makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on. It is one of the popular front loading trailers, another one is detachable gooseneck trailer.

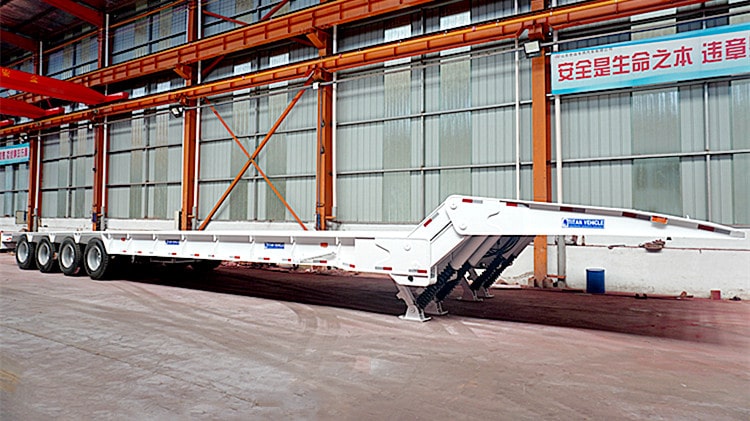

4 Axle Hydraulic Folding Gooseneck Trailer for Sale in Nigeria

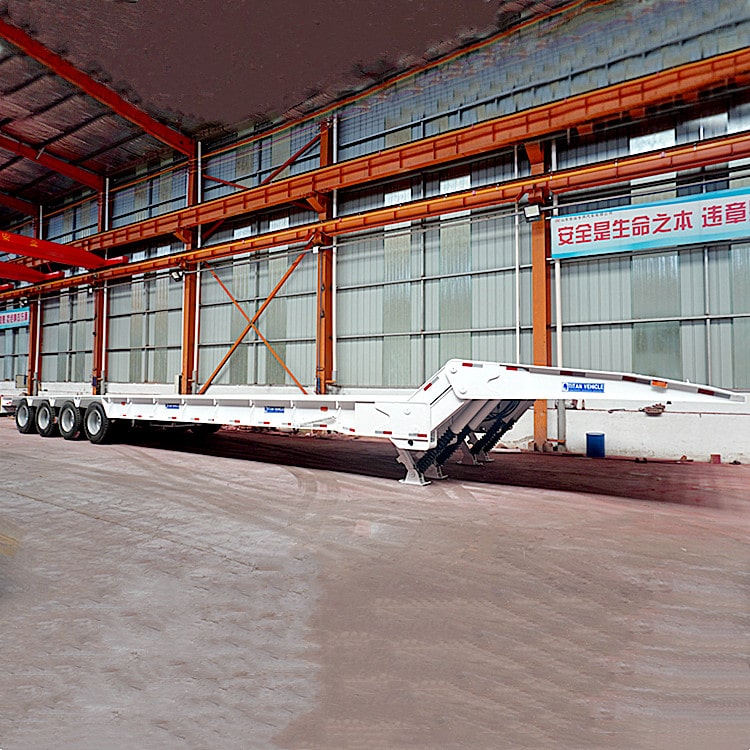

4 Axle Hydraulic Folding Gooseneck Trailer for Sale in Nigeria

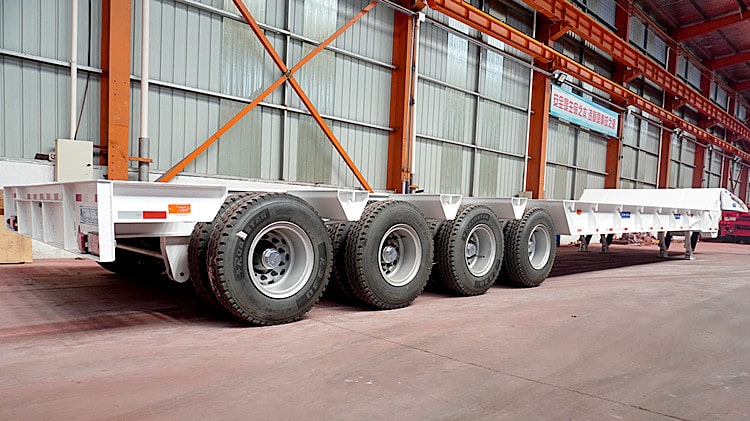

4 Axle Hydraulic Folding Gooseneck Trailer for Sale in Nigeria

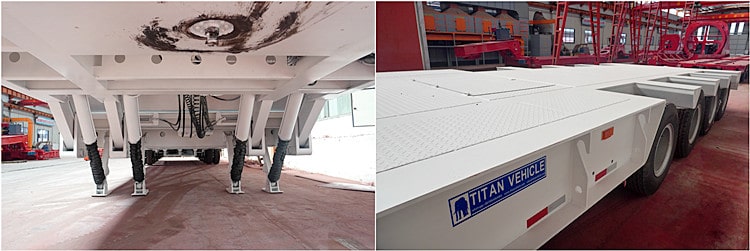

 100ton Folding Gooseneck Trailer for Sale

 100ton Folding Gooseneck Trailer for Sale

4 Axle 100ton Folding Gooseneck Trailer for Sale



Specification:

Dimension: 18000mm x 3800mm x 1800mm

Working platform: 14000*3800MM

Loading capacity: 100 TONS.4 AXLES,16TONS.

Gooseneck: hydraulic folding gooseneck.

Side hook for chain or belt

Checkered plate with 20 mm squre bar on ramps

Twist locks :6 units for 40/45 ft container

Axle: 4 Axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Through the video, you can know different types of folding gooseneck trailer , 4 axle hydraulic folding gooseneck trailer , 100ton folding gooseneck trailer for sale.

4 Axle Hydraulic Folding Gooseneck Trailer for Sale in Nigeria

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
