100-120 Ton Low Bed Trailer

  • 1/1

Different types of low bed trailer

3 Axle Low bed trailer specification

TITAN low bed trailer delivery

What is the main advantage of a low bed trailer over a flat bed?

How to keep cargo stable on low bed trailer

4 axle 100t low bed trailer for sale in Zimbabwe


Different types of low bed trailer

As a professional manufacturer, TITAN VEHICLE low bed trailer has provided many low bed trailers for many countries. We have many more advantages on the low bed trailer cost and quality control. Material and suspension are optional. TITAN Low bed trailers have different capacities, such as 50, 60, 70, 80 tons lowbed trailer for sale, 100/120/150 tons lowbed trailer, hydraulic low bed trailer. Each type uses a different number of axles from 2, 3, 4 axles lowbed trailer for sale and 5, 6, 7, 8 axles.

1. Normal type low bed trailer:

This normal type low bed trailer is the most popular type low bed trailer with a loading capacity from 20 - 80 tons, the low bed trailer equipped with 2-4 axles. Usually equipped with the spring ladders for the machines such as the wheel loaders, excavators, or some different types of wheeled machines transportation. The high of the working platform is various from 1000mm to 1200mm.

2. Heavy load low bed trailer:

Heavy duty low bed trailer is almost the same as the normal type low bed trailers, only comes with a higher loading capacity normally from 80 tons to 140 tons. This type of lowbed trailer for sale is a cost-effective type low loader, usually used for those countries which don't have the special requirements on the axles load and the off-road working environment.

Another type is dual lane axles lowbed trailers, the main specification for the dual-lane low loader trailer is its axles. The dual-lane axle low bed trailer equipped with the short axles, each line has two short axles with 8 sets of tires and rims. This type of low loader trailer is usually used for super heavy equipment transportation. The working platform length will be designed according to the machines that will be transported, tire covered, or exposed types.

The entire cargo platform is straight and above the wheels. The upper space of the overlapping part of the tractor and the excavator trailer is fully utilized so that it has a large cargo platform area. This type of frame structure is relatively simple and easy to manufacture and is mostly used for super heavy trailers.

3. Detachable lowbed trailer:

Detachable gooseneck trailer also known as a gooseneck lowboy trailer. The container low bed frame has a stepped shape, and the plane of the cargo platform is behind the gooseneck, so that the main plane of the cargo platform is lowered, which is convenient for loading and unloading and transportation of goods. Our lowboy trailer for sale has a detachable gooseneck design on the front, which avoids overturning the body when transporting heavy equipment and ensures the safety of the container low bed and the driver. It is generally suitable for transporting large or ultra-high equipment.

Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

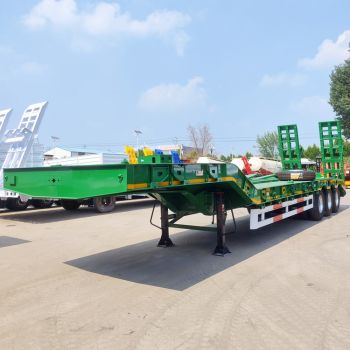

3 Axle Low bed trailer specification

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 60-80 Tons

Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

TITAN low bed trailer delivery

All of TITAN low bed semi trailer are tested to ensure that our heavy load trailer are free of problems.  All low bed semi trailer is tested for carrying capacity after production is finished. TITAN has dedicated technical staff to guide the operation.

And TITAN semi low bed trailer have professional staff to make a package, all of them were trained constantly. Please notice that to prevent the 40ft low bed trailer paint from being corroded by seawater to we spray a layer of wax on the surface of the 3 axle low bed trailer before shipping. And covering poncho to prevent the damp condition.

Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

What is the main advantage of a low bed trailer over a flat bed?

The difference between the high bed trailer and low bed trailer is mainly on the working platform and the usage. The low bed trailer is a kind of machinery transport use trailer with a much lower working platform, with a high range of 400mm to 1200 mm which is also called the lowbed trailer, lowboy trailer, machinery transport trailer, equipment transport trailer, etc. The high of the working platform for low bed trailer price usually depends on the loading capacity and the equipment that will be transported.

The high bed trailer that we usually said is a type of flatbed trailer. The flatbed trailer has a higher platform height, which is mainly used to transport containers.

Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

How to keep cargo stable on low bed trailer

1. Increase the size of the base of support

You can increase the stability of a heavy object by increasing the size of its base of support. Increasing the size does not automatically increase stability. You must increase towards the direction of the oncoming or impeding force.

One way of increasing the base support is to change the position such that the widest part of the object lies on the ground. Another way is to increase the number of contact points with the ground where possible.

For some objects, you may need to change the package or change the position to create an additional contact point.

Also, the 4 axle low bed trailer for sale transport can widen by some accessories to increase the size of the working platform.


2. Driving skills

Place the object at the center of the base of support

The vertical projection of the center of gravity should be at the center of the base of support. In other words, the balance point should be at the center of the base or ground for the object to remain stable.

Placing the object near any of the edges may cause it to fall, especially when the semi low bed trailer or transporter changes its momentum. By placing the object at the center, you increase the distance that the center of gravity has to travel before it can cause the object to fall.


Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

Low Bed Trailer Frame in Factory


3. Lower the speed

Moving an object at a high speed increases its chances of toppling over. Speed does not necessarily affect the amount of gravitational force on an object. However, speed determines the reaction of the object when faced by an external force.

For instance, if you are transporting an object with 4 axle low bed trailer price at a high speed, a sudden stop or hitting an obstacle will cause the object to topple over. Sometimes stepping on the brakes when driving at a high speed causes the object to fall or slide. If you are carrying the object, walking at a low speed helps to keep the center of gravity or balance point at the same position.


4. Increase friction

The level of frictional resistance between the contact point or points and the base or ground influences the stability of the object. When the level of frictional resistance is low, the object will slip or skid on the ground.

High friction, on the other hand, improves stability, especially on a smooth base. Consider the surface of the contact point and choose to package with a rough surface.

Sometimes transporters use sawdust on their low bed trailer for sale to keep heavy objects with smooth surfaces stable. You can add any other rough material on the floor or base to increase friction as long as it does not damage the object.


100t low bed trailer for sale in Zimbabwe

It is the first time for a Zimbabwe customer to cooperate with TITAN, but the customer has 10 years of experience in importing semi trailers. Due to business problems with the supplier that the customer cooperates with, the customer needs to find a new supplier for long-term cooperation.

Customers found TITAN on Google and saw feedback from other customers using 3 axle low bed trailer. The customer also needs 100t low bed trailer to transport large equipment. Finally, send the inquiry. He had a very happy conversation with business Barry. The client said that he was too regretful and did not cooperate with TITAN as soon as possible. TITAN's latest technology and professional team factory moved him. After discussing the details, the 100t low bed trailer was finally purchased.

Different Models of Low Bed Trailer - Semi Low Bed Trailer for Sale in Nigeria

Semi Low Bed Trailer Feedback from Nigeria Customer
