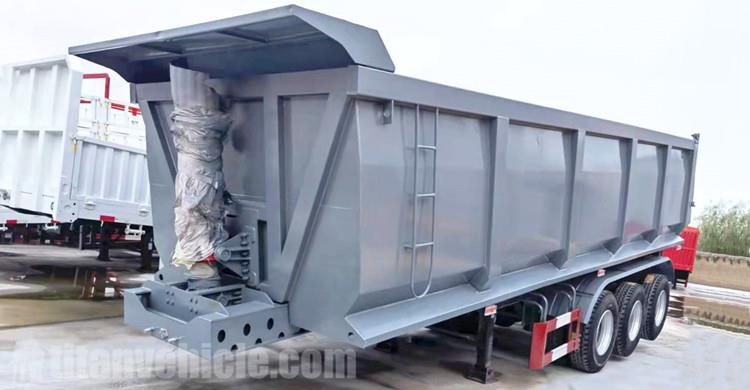

Tri Axle U Shape Rear Dump Semi Trailer for Sale in Madagascar
We got an inquiry directly from a Madagascar client, and this was his first time using semi trailer for his business. And our sales manager was responsible for providing service for him. By the way, language is not the problem between our customers and our staff.
Based on our experience and clients' clear requirement, 2 sets dump semi trailer order was confirmed. TITAN dump semi trailer for sale can be used in many other fields such as construction, agriculture, etc.
We have different shapes and types of dump semi trailers, which are divided into side dump trailer and rear dump trailer. skeleton end dump trailer, and flatbed type tipper trailer, drawbar tipper trailer. According to customers' requirements, we recommend tri axle U shape dump semi trailer.
Due to the large order volume, the factory is now working overtime to produce semi trailers. So most of the finished products will be shipped recently. In the early morning of September 10th, our packed two sets tri axle dump semi trailer has arrived at the port and will be sent to Madagascar.

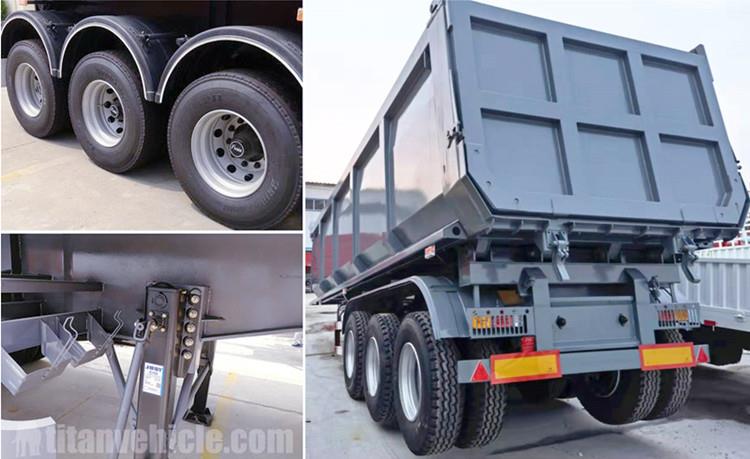

Details of Tri Axle U Shape Rear Dump Semi Trailer for Sale
The rear dump semi trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The rear dump trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.
The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.
The lift valve sends high-pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end dump trailer hydraulic oil cylinder.

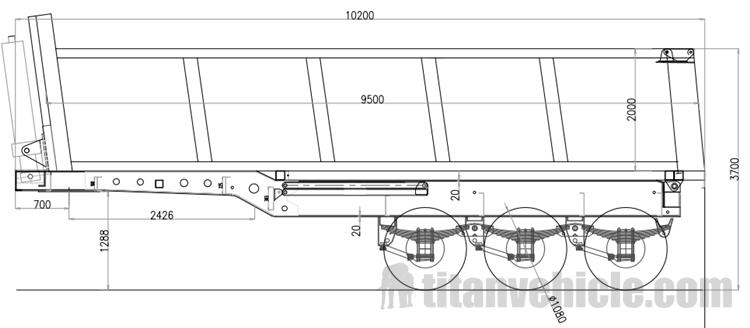

Tri Axle U Shape Rear Dump Semi Trailer Frame
New dump semi trailer inspection
1. During the lifting process, pay attention to check whether the hydraulic cylinder, gear pump, control valve and other components work normally, such as whether the hydraulic lifting is stuck, bouncing and abnormal noise.
2. After 8-10 times of no-load lifting test, the u shape dump semi trailer works normally. It can be regarded as good dumping performance without oil and gas leakage.
3. Check whether the amount of oil in the hydraulic oil tank is sufficient, otherwise, the full amount of oil must be added according to the requirements of the prescribed oil grade. At the same time, check the manual operation valve, the air circuit for leaks, and the hydraulic system for leaks.
4. Under no-load conditions, carry out the lifting test according to the operating procedure of the lifting mechanism of the dumping mechanism.

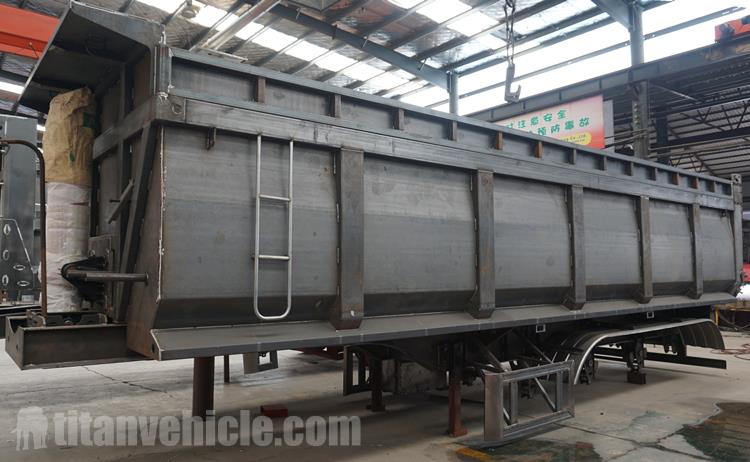

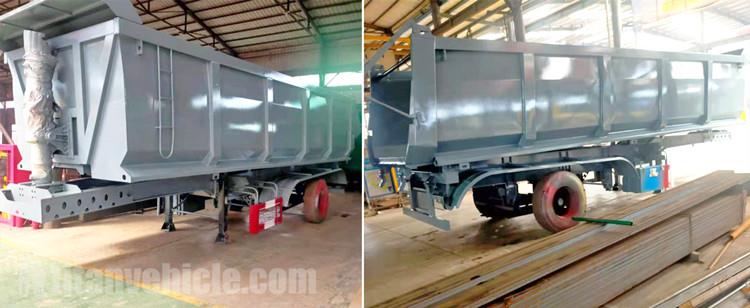

Tri Axle U Shape Rear Dump Semi Trailer in Factory Production
How to properly maintain the dump semi trailer？
1.The diesel pump may be burned because there is too little diesel in the fuel tank to dissipate heat from the diesel pump. When the indicator light of the fuel gauge lights up, you should refuel immediately.
2.Refueling time is best in the morning, especially in the hot summer, to avoid a large amount of gas in the fuel tank, resulting in less refueling. After mentioning the new tri axle dump semi trailer, the fuel must be filled up for the first time. This is to check whether the fuel gauge of the new tipper trailer is accurate.
3.For the economy of the vehicle, except for the first time, it is not necessary to fill up the fuel tank in the future. Generally, it can be increased to 2/3.
Through this video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer.
And the process, testing, packaging and customer feedback, etc.
Welcome to download our quotation, if you have other questions, please contact us
