Table of contents
Chapter 1: What is the size of a low-bed trailer?
1.1: 40ft low bed trailer dimensions
1.2: What is the maximum length of low-bed trailer?
Chapter 2. Why do 40ft low bed trailer price vary?
Chapter 3. What is a low-bed trailer vs flatbed?
The size of a low bed trailer can vary depending on the specific model and manufacturer.
However, in general, low bed trailers are typically longer and wider than standard flatbed trailers to accommodate oversized or overweight cargo. The length of a low bed trailer can range from 11.5m to 18.5m, while the width can range from 2.5m to 3.5m.
Additionally, the height of the 40ft low bed trailer can vary based on its design, with some models featuring a higher deck height to allow for greater ground clearance for off-road transport.
As a professional manufacturer, TITAN VEHICLE has provided many 40ft low bed trailers for many countries. TITAN low bed trailers have different capacities, we can customize the low bed trailer for you according to your needs.
The following are the dimensions of several conventional models of TITAN low bed trailers:
2 axle 40ft low bed trailer dimensions: 13000*3000*3750mm(platform height 1300mm)
3 axle 40ft low bed trailer dimensions: 14000*3000*3400mm(platform height 950mm)
4 axle 40ft low bed trailer dimensions: 15800*3000*3750mm(platform height 1300mm)
The maximum length of a low-bed trailer can vary by country and region, as different places may have different regulations regarding the size and weight of trailers allowed on their roads. It's best to check with local authorities or regulatory agencies in your area to determine the specific maximum length allowed for low-bed trailers.
The following are the lengths of several conventional models of TITAN 40ft low bed trailer price:
The 2 axle low bed trailer length: 13000mm
The 3 axle low bed trailer for sale length: 14000mm
The 4 axle low bed trailer length: 15800mm
The 4 line 8 axle low bed trailer length: 17500mm
The price of a 40ft low bed trailer can vary due to several factors, including the quality of materials used to construct the trailer, the manufacturer or brand of the trailer, the features included in the trailer, and the location where it is being sold. Other factors that can influence the cost of a low bed trailer include transportation costs, taxes, and import fees.
Some customers said that looking at the trailer is similar, why is your price expensive? Today I will use TITAN 40ft low bed trailer for sale to illustrate the reasons.
1. Material used by low bed trailer
For low bed trailers of the same type and weight, the price will vary greatly depending on the strength of the selected steel.
The main beam of TITAN 40ft low bed trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.
TITAN low bed trailer main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 30mm and the width of upper and lower plate is 220mm.
Other factories use Q345 steel main beam for the 40ft low bed trailer. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of TITAN.
Main Beam of 40ft Low Bed Trailer Price
2. Ramp of low bed trailer

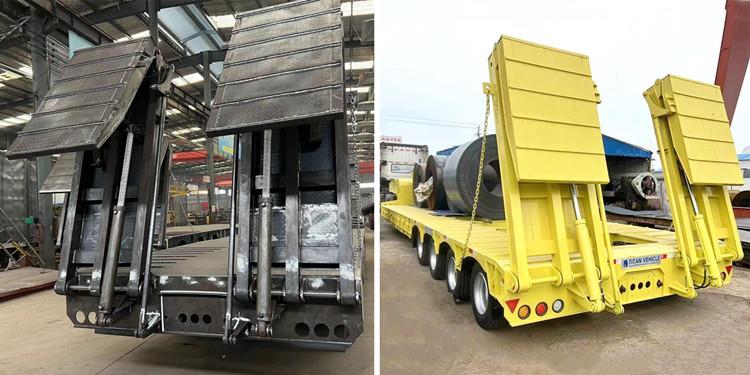

The ramp of 40ft low bed trailer is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.
The ramp adopts four-in-one high-strength board, which has high strength, durability and no deformation. Using high elastic double spring climbing ramp, ordinary people can easily lift with one hand, which is more convenient to operate.
The service can up to more than 5 years, other factories use channel steel welding, it is easy to deformation collapse.
Folding Ramp of 40FT Low Bed Trailer for Sale
3. Accessories of 40ft low bed trailer for sale
Accessories of different brand materials will directly lead to price differences.
Landing gear: TITAN 40ft low bed trailer for sale optional JOST landing gear, is the world famous recognized brand accessories. Better bearing capacity, long service life.
Suspension: We use the reinforced suspension on our 40ft low bed trailer price, 70mm center balance pin. For some other factories, they use the light type suspension, the center pin is 45mm only, will make a short service life and lead to serious tire wear.
Axle: TITAN low bed trailer use 16 ton brake system axle; our axle has 15 years of experience in production with a better bearing capacity and good braking effect. Other factories use 13 ton brake system axle.
Tires: TITAN low bed trailer tire has been working with the company for over 12 years. In China, it can use 200,000 kilometers for two years without any problem
Brake system: TITAN low bed trailer braking system, effective braking, fast braking response, braking distance reduction of more than 5 meters. Also available the wacbo braking system.
Lamps: The whole 40ft low bed trailer is equipped with LED lamps and will be shipped with a set of taillights and side lights.
3 Axle 40FT Low Bed Trailer for Sale
Low bed trailers are widely used in different fields due to their advantages over a flatbed. The main advantages are summarized below.
Versatility
One of the reasons why many companies buy low bed trailers is that they are so versatile. The structure of the low bed trailer allows the company to easily transport such a wide cargo. Keep in mind that trailers can also handle ultra-high cargo.
In most cases, heavy machinery and equipment are very wide. A company that handles different types of goods does not need to buy different trailers for each category. As long as the goods are packaged correctly, the 40ft low bed trailer can transport any type of goods.
Stability
Compared with flatbed trailer, 40ft low bed trailer for sale deck is excellent. A lower deck means a lower center of gravity. Therefore, 40ft low bed trailer is more stable than trailers when transporting heavy goods.
One way to increase stability is to expand the support base. For 40ft low bed trailer for sale, this is possible because the width of the cargo plane can be widened. Regardless of the height and weight of the cargo, the trailer can remain stable on the road.
Meet height restrictions
Some countries have laws restricting the height of goods that can be transported on the road. Loading tall equipment on trailers is often a huge challenge for transportation companies.
Low bed trailer for sale provide companies with a solution to safely transport ultra-high equipment without breaking the law.
