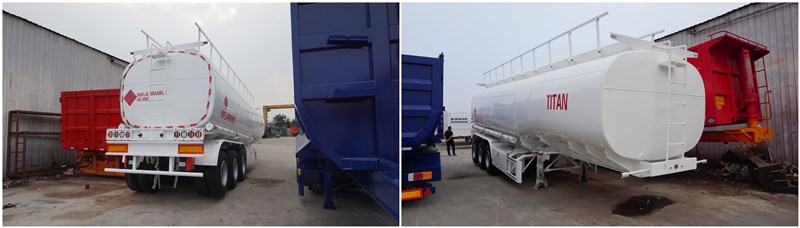

The new type of fuel tanker trailer is well received in many countries, and we have received some good feedback from our customers.
There is not only one type of our fuel tanker trailers, we can customize the product according to your requirement. And we TITAN offer carbon steel, stainless steel or aluminum material tanker trailers. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.

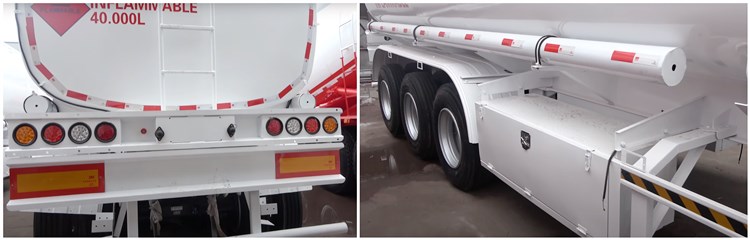

3 Axle Fuel Tanker Trailer for Sale
The customer still has certain requirements for accessories as usual, Landing Gear must be the JOST brand, and the fuel tanker trailer axle is FUWA.
The axle with 16 ton braking system is used; the axle of TITAN has 9 years of experience in producing quality, with better bearing capacity and good braking effect other plants use axles with 13 ton brake systems.
The landing gear is the supporting device of fuel tanker trailer, It is always used to support the ground to bear the first part load when the tractor and semi-trailer decoupling are separate.

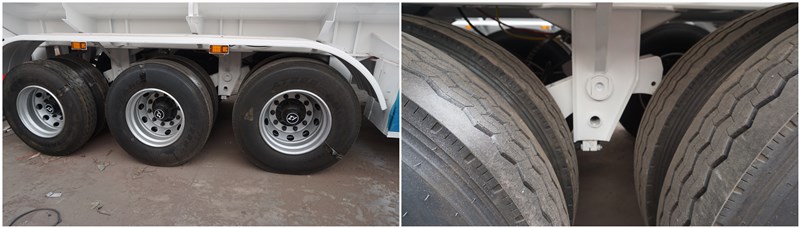

Fuel Tanker Trailer Tyres and Suspension
1. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres. With the different compartments, like two, three, four, or more compartments, to load different liquid. The liquid tanker semi trailer used for carrying different liquid like fuel, petrol, water, palm oil, bitumen asphalt etc.
2. So we make the fuel tanker trailers, heavy bitumen tanker semi trailer, or chemical sulfuric acid tanker semi trailers. For the Hydrochloric Acid Tanker, TITAN produce the most strong acid tank body to make sure the safety. We adopt 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer. To keep the Nitric Acid tanker safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have long service life.
3. In order to ensure the cleanliness of the oil tank, the oil tank and the oil delivery system should be cleaned regularly, and the internal and external joints at both ends of the oil delivery hose should be frequently coated with lubricating oil, which is easy and convenient for disassembly.
4. The driving part that carries the fuel tanker trailer is generally called the car chassis. Drivers are generally more expert in this area. The problem is that after the tank truck is equipped with an oil pump, we install the drive shaft and power take-off from the engine. With these two devices, we need to pay special attention to the operation and improper operation. The device is scrapped. Before the operation of the oil tanker trailer check whether the pipeline system is leaking, whether the grounding wire is disconnected, and whether the exhaust pipe is damaged. If the problem is found, it should be solved before the operation.
5. Check the fire extinguisher device before leaving the vehicle. The user of the fuel truck should be familiar with the use of the fire extinguisher and perform inspection and maintenance according to its instructions.
6. Keep the breathing valve clean and keep it in working condition. The spring in the valve should not be replaced at will, so as not to affect the effect of inhalation and deflation. When the breathing valve is blocked, there is a risk of deformation of the tank.
7. Oil tanks and piping systems should be cleaned regularly. Regularly check whether the joints of the piping system are well connected and the sealing is reliable.
8. The use and maintenance of the oil pump must be carried out in strict accordance with its operation and maintenance instructions, which are provided with the vehicle.
1. If the oil tanker trailer leaks, the driver should park the vehicle in a safe open place as much as possible and turn on the double flashing warning lights.
2. Block the leakage port according to the oil leakage.
3. With the assistance of the driver, the escort placed the danger triangle sign 150 meters away from the direction of the tanker truck, and isolated the scene, took out the fire extinguishing equipment provided with the truck and placed it in the oil leakage place, and designated a fire ban area.
4. The escort isolates the personnel to ensure that irrelevant personnel stay away from the dangerous area, and at the same time avoid inhaling the toxic gas volatilized from the leakage of the diesel tanker trailer.
5. Immediately start the emergency plan. If the plugging fails, immediately call the company's emergency number and report relevant information.
6. Fuel tank truck drivers and escorts use sand or oil cotton to absorb oil while waiting for rescuers to arrive, and take measures to prevent spilled oil from spreading or flowing into the drain.
The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres. With the different compartments, like two, three, four, or more compartments, to load different liquid. The liquid tanker semi trailer used for carrying different liquid like fuel, petrol, water, palm oil, bitumen asphalt etc.
So we make the fuel tanker trailers, heavy bitumen tanker semi trailer, or chemical sulfuric acid tanker semi trailers. For the Hydrochloric Acid Tanker, TITAN produces the most strong acid tank body to make sure the safety. We adopt 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer. To keep the Nitric Acid tanker safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have long service life.

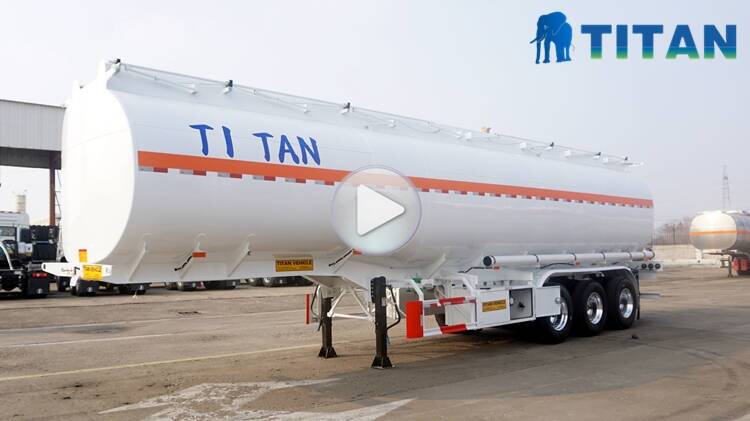

Through the video below, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer)
And the process, testing, packaging and customer feedback, etc.
