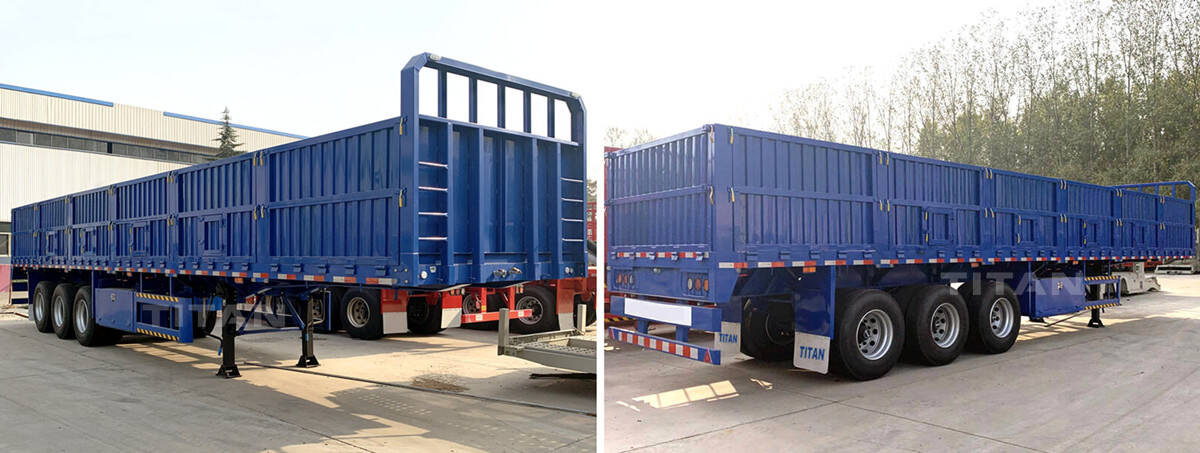

Special Offer! 3 Axle Side Wall Trailer 10% Off Discount



3 Axle Side Wall Trailer 10% Off Discount

Produced in August 2020. The side wall trailer is in stock at the factory, we can repaint the color for you according to your needs.



Side Wall Semi Trailer for Sale | 3 Axle Open Top Trailer 10% Off Discount Prices



Advantages of flatbed trailer:

TITAN Side Wall Trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, etc.

With ability to carry heavy loads with utmost ease and OEM assured body warranty, TITAN Side wall trailer is an ideal choice for your business.

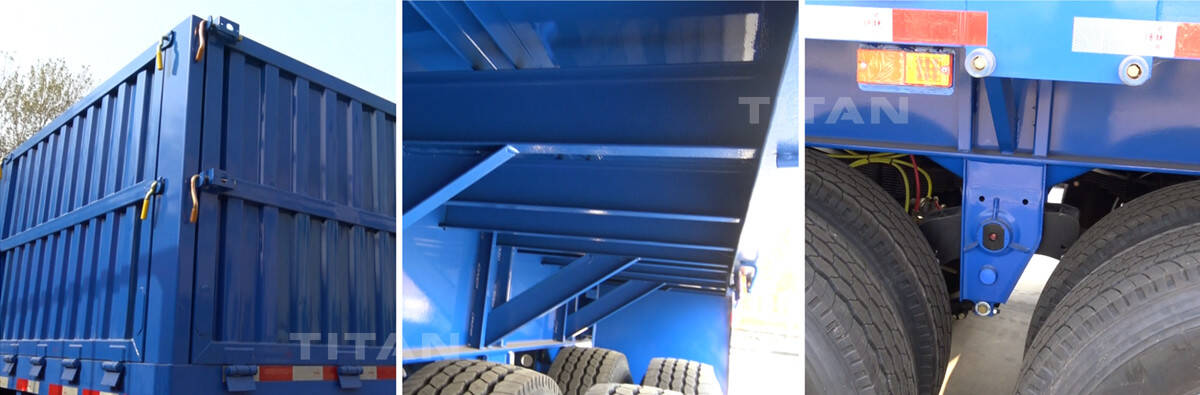

Details of side wall vehicle trailer:

1. High side board. The side wall is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death.

2. Sidewall semi trailer frame. Frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports.

3. Suspension system. The suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and has the function of absorbing driving vibration and so on.

4. Axles and tires. Dry cargo trailer three axle assemblies of the same structure are installed under the suspension system.

5. Support leg. In order to make the dry goods carrier trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.



Side Wall Semi Trailer for Sale | 3 Axle Open Top Trailer 10% Off Discount Prices



side wall trailer 10% off discount promotion, click to get the price

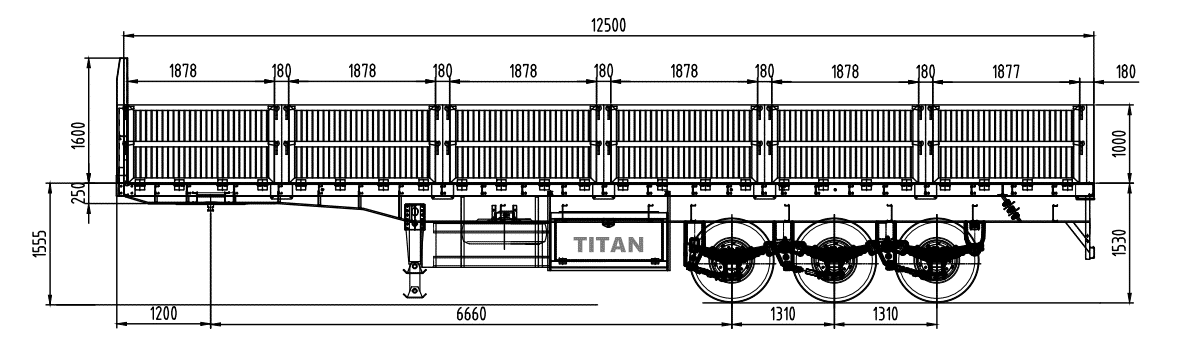

Specifications of open top trailer:

Dimension(mm): 12500*2500*2530mm
Sidewall high: 1000mm
Loading capacity(ton): ≤60T
Material: Q345 steel
Spring Leaf: 13mm(thickness)*10 layers
Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 inch
Brake Valve: WABCO
Tare Weight: About 7.6T
Axles: 13 T Axle 16T braking system, TITAN Brand , 3 units
Tire: 12R22.5, 12 units
Rim: 9.00*22.5, 12units
Suspension: 8mm(thickness) Mechanical suspension
Landing Gear: JOST brand
Painting: Polyurethane paint
Light: LED light
